ADVANCED PORTABLE VIDEOSCOPE INSPECTION SYSTEM WITH PAN AND TILTABLE COLOR CAMERA HEAD
10/09/2013 Lenox Instrument Company, Inc.

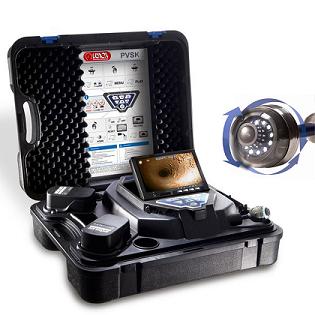

Trevose, PA, September 2013 - Lenox Instrument Company announces its new Advanced Portable Videoscope System. The rugged, self-contained system combines state-of-the-art video technology, cordless operation, and compact portability at an affordable price and is well suited for inspection of bridges, drill pipe, turbines, airframes, power generation equipment, process tanks and vessels, tubing and pipes, heat exchangers and hydraulic cylinders and other difficult to reach videoscope inspections.The Lenox Portable Videoscope System features a removable, 1.5" (40 mm) diameter, waterproof (IP67), 360° pan and 180° tiltable, color CCD camera head with built-in, bright LED lighting that can be controlled from the system's control panel. Mounted to the end of a flexible, retractable, push rod, the camera can negotiate 90 degree bends and inspect lengths up to 98 feet (30 m) with the retracted push rod length sensed electronically and displayed on-screen. An optional handheld PVSK Locator can be added to the system that detects radio signals transmitted by the camera head for precise location of the camera head during borescope inspections.
The advanced, Portable Videoscope System includes a tiltable and removable 7" TFT monitor, built-in image recording onto a removable memory card (32GB max), and a mini USB port for quick video file transfer to a computer for viewing and playback with the included PVSK Viewer Software. A standard, built-in RCA video output is also provided.
The Lenox Portable Videoscope System is housed in a compact, heavy duty, carrying case and
includes 2 rechargeable batteries (2 hours of continuous operation per battery) for extended use in the field and a built-in power supply/charger when AC power is available.
Optional system accessories include a removable, 1" (26 mm) diameter, waterproof (IP68), 120° FOV, color CCD camera head with built-in, LED lighting, centering guide, camera roller guide, and protection sleeve that protects and improves the ability of the system's camera head to take bends.
Each Portable Videoscope System is designed, manufactured and serviced in-house by Lenox Instrument Company, and is backed by an industry-leading two-year warranty.
For more information, please contact:
Lenox Instrument Company, Inc
265 Andrews Road
Trevose PA
19053-3427
USA
Tel: +1-800-356-1104 or 215-322-9990
Fax: 215-322-6126
E-mail: sales@lenoxinst.com
Web: www.lenoxinst.com.
