Air conditioners for demanding environments
14/01/2014 Schroff (UK) Ltd

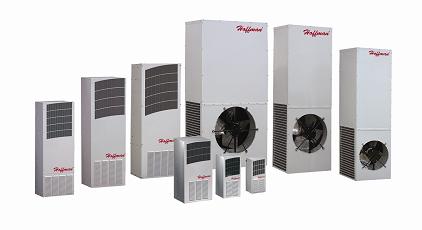

For its new Hoffmann stainless steel A30S4E industrial cabinets, Pentair offers the Hoffman T-series of air conditioners. Designed for particularly demanding applications in harsh environments, these air conditioners satisfy the requirements particular to their installation site - typical applications include those in the oil and gas industry and similar situations.The A30S4E cabinets ensure ingress protection to IP66 and meet the IK10 and NEMA Type 4X industry standards. The T-series air conditioners are available in a powder-coated steel plate version to IP56 or, for highly corrosive environments, as NEMA type 4X in stainless steel. They feature environmentally friendly R134a or R407C coolants and robust compressors with an operating temperature range from -40 °C to 55 °C.
Each model is available for different supply voltages (115, 230 and 460 V AC) and in a range of cooling capacities (235 to 9192 W). The optimal cooling capacity is supported by washable, reusable aluminum filters. Standard equipment on these units includes pressure regulation, compressor heating, coated condenser, fault indicator, mechanical thermostat and cabinet/enclosure heating. The air conditioners are certified to UL/cUL, CE, GOST, NEMA 4X and Telcordia GR-487. In addition, all components used are corrosion-resistant and conform to the RoHS Directive.
For environments subject to extremely high levels of dust or spray water (e.g. deserts or oil platforms), Pentair recommends its Hoffman PROAIR series of air conditioners. These units are also available either in powder-coated or stainless steel versions and use the environmentally friendly R134a coolant for operating temperatures from -40 °C to 55 °C, with cooling capacities of between 400 W and 2000 W can be achieved.
Compared to the T-series, these air conditioners feature an additional cover that further protects them from ingress of dust or water. Should customers require greater convenience in thermostatic control or networking options for fault warnings and status checks, the Hoffman SPECTRACOOL range of air conditioners is recommended.
Anywhere where the ambient temperature is extremely high and the environmental conditions are dirty, humid or aggressive, Pentair offers a further special cooling solution with the Hoffman Vortex A/C cooler. The Vortex A/C cooler operates on the vortex cooling principle and can deliver cooling capacities of 100 W to 750 W. It is thus suitable for smaller cabinets or enclosures and for localized cooling of components. This cooling solution is also suitable for areas with explosion protection and can be used as a hybrid cooling solution in conjunction with a heat exchanger or an air conditioner.
For more information, please contact:
Schroff (UK) Ltd
Maylands Avenue
Hemel Hempstead
Herts
HP2 7DE
Tel: +44 1442 240471
Email: schroff.uk@pentair.com
Web: www.hoffmanonline.com/thermalmanagement
