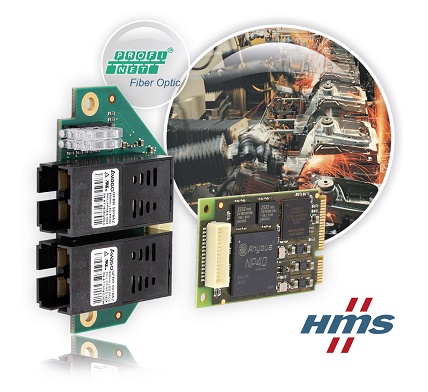

IXXAT INpact PCIe Mini card enables PCs to communicate on PROFINET IRT Fiber Optic
13/12/2016 HMS Industrial Networks AB
HMS Industrial Networks expands the IXXAT INpact multi-protocol card series with a PCIe mini variant for PROFINET IRT Fiber Optic.Designed for secure data transmission in harsh environments
The IXXAT INpact enables easy implementation of a PROFINET IRT Fiber Optic Slave interface and can be used in compact industrial PCs as well as in mobile devices. Typical use cases are coupling of subsystems with superordinate networks, visualization of process data on human machine interfaces (HMIs) as well as data acquisition in PC-based process devices. IXXAT INpact is fully compliant with the requirements of the AIDA (Automation initiative of German automobile manufacturers) for a PROFINET interface.
PROFINET IRT via fiber optic meets the highest requirements for interference immunity and data transmission. It is often used in critical areas in the automotive field, e.g. in robotic cells for car body construction, in automated welding systems and other areas with high electromagnetic interferences.
Hardware concept of the IXXAT INpact multi-protocol card series
The new PROFINET IRT Fiber Optic card is the newest member of the IXXAT INpact series which supports a variety of Industrial Ethernet and fieldbus protocols, such as PROFINET, EtherCAT, EtherNet/IP, Powerlink, Modbus-TCP and PROFIBUS. The multi-network capability of INpact is based on the proven Anybus CompactCom technology from HMS - used within millions of devices globally.
The FPGA-based Anybus NP40 network processor includes all functions required to handle the communication between the Industrial Ethernet or fieldbus network and the PC-based customer application. The FPGA has a low latency and a deterministic real-time behavior, making it ideal for demanding industrial applications. The PROFINET IRT FO connection is made via SC-RJ connectors. Other network standards are supported by corresponding Sub-D9 or RJ45 Ethernet interfaces.
The IXXAT INpact is offered as a dedicated version for each network with pre-installed network protocol. Furthermore, INpact is also available as a Common Ethernet version, a highly flexible and open version in which the desired industrial Ethernet protocol can be flashed by the user.
Connection to the customer application
The IXXAT INpact is supplied with a comprehensive driver package for Windows and Linux, which allows a fast and easy development of customer-specific applications, regardless of the used card type or protocol. Thanks to a universal programming interface, users can change between INpact cards and protocols without changing the customer software, which leads to increased flexibility and a significant reduction of the development costs. Support for real-time operating systems such as RTX, Intime, VxWorks and QNX is available on request.
For more information, please contact:
HMS Industrial Networks Ltd
The Venture Centre
Sir William Lyons Road
Warwick University Science Park,
Coventry
CV4 7EZ
UK
Tel: +44 (0) 1926 405599
Fax: +44 (0) 1926 405522
Email: uk-sales@hms.se
Web: www.ixxat.com/inpact
