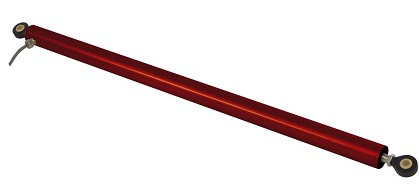

LRL-27 Series Long Stroke Heavy Duty LVIT Inductive Linear Position Sensors
21/07/2020 Alliance Sensors Group
H. G. Schaevitz LLC, Alliance Sensors has expanded its sensor product offering by adding to its line the LRL-27 Series of long-stroke LVIT position sensors. These are contactless devices designed for factory automation systems and a variety of heavy duty industrial or commercial applications such as solar cell positioners, wind turbine prop pitch and brakes, material chute or gate positioners on off-road or agri-vehicles, robotic arm position feedback, and packaging equipment. Operating from a variety of DC voltages, the LRL-27 series offer a choice of four analog outputs, and all units include ASG's proprietary SenSet™ field scalability feature. With their compact yet robust design, superior performance, and excellent stroke-to-length ratio, LRL-27 sensors are ideal for industrial and OEM position sensing applications.LRL-27 Features:
-€¢ LVIT Technology™ (Linear Variable Inductance Transducer)
-€¢ Contactless operation prevents wearout from dither or cycling
-€¢ 5 Nominal ranges from 8 to 18 inches (200 to 450 mm)
-€¢ Excellent stroke-to-length ratio
-€¢ 1.05 inch (27 mm) diameter anodized aluminum housing sealed to IP-67
-€¢ Radial cable exit version comes with swivel rod eye ends
-€¢ Axial termination versions with either M-12 connector or 1-m cable
The LR series also includes the LR-27 for shorter stroke applications, LR-19 series for applications where a short length and smaller diameter body is required, and the spring loaded LRS-18 series. Technical data sheets and additional information can be found at www.alliancesensors.com.
Product Link: alliancesensors.com/lvit-linear-position-sensor-lrl-27-series
For more information, please contact:
Alliance Sensors Group
A Division of Harold G. Schaevitz Ind., LLC
102 Commerce Dr. Unit 8
Moorestown
NJ 08057
USA
alliancesensors.com/
