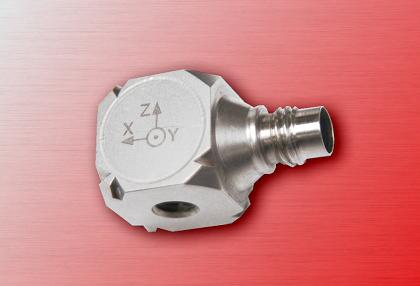

Miniature triaxial accelerometers can take the heat
23/12/2013 Kistler Instruments Ltd
With an operating temperature range from -54°C to +165°C, the Type 8766A miniature triaxial accelerometers from Kistler Instruments (http://tinyurl.com/kil-8776a) are ideal for use in harsh environments such as automotive engine bay and under vehicle measurements, aerospace subsystem vibration testing and industrial quality control applications.The four models in the range, ±50g, ±100g, ±250g and ±500g, use the Kistler PiezoStar® shear element design which provides a wide operating frequency range and outstanding long term precision and stability. The sensor design combines PiezoStar® crystals and integral hybrid microelectronics to achieve very low sensitivity variation over the wide operating temperature range, compared with quartz and ceramic sensing element designs. The hermitically sealed, welded titanium, ground isolated, IP68 housing permits operation in harsh, dirty or wet environments and a TEDS (Transducer Electronics Data Sheet) option is available to simplify installation and set-up.
Mounting by a central tapped hole on each of three sides of the cube design gives maximum mounting flexibility and allows the miniature 4-pin ceramic connector to be positioned throughout 360 Deg for convenient cable orientation. Alternatively, wax, adhesive or magnetic mounting may be used where stud mounting is not possible. The Type 8766A triaxial accelerometers can be powered by any industry standard IEPE (Integrated Electronic Piezoelectric) compatible power source.
For more information, please contact:
Kistler Instruments Limited
13 Murrell Green Business Park
London Road
Hook
RG27 9GR
Tel: +44 1256 741550
Fax: +44 1256 741551
Email: sales.uk@kistler.com
Web: www.kistler.com
