RDS Announces NLT's New 15.6-inch WXGA LCD Panels
06/09/2013 Review Display Systems Ltd

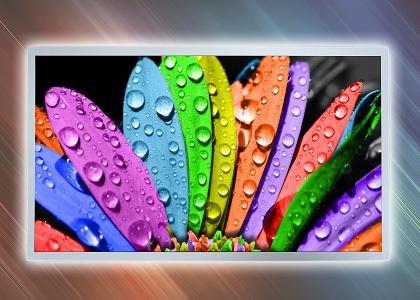

Westerham, UK, 4th September 2013 - Review Display Systems Ltd (RDS), specialist provider of optimal technical and commercial display system solutions, has introduced NLT Technologies' new 15.6-inch WXGA colour LCD panels delivering the performance and feature set needed for industrial applications.The NL13676AC25-01D panel delivers superior viewing thanks to a combination of NLT's proprietary LED backlight system design for high-luminance of 400 cd/m2 and a high contrast ratio of 900:1. The result is a high-resolution 15.6-inch (39.6 cm diagonal) WXGA colour LCD panel that achieves a fast response time to allow smooth display of video images and special features including 'tickers' and scrolling updates.
The wide viewing angle of 80° vertical up/down and horizontal left/right is achieved by applying NLT's high-quality imaging technology Super Fine TFT (SFT) technology. The panel delivers 16,777,216 / 262,144 switchable colours, a resolution of 1366H x 768V pixels and a 16:9 wide aspect ratio, which help satisfy the growing industrial demand for wide format LCDs.
The LED backlight system with built-in driver and replaceable LED, delivers both a long-life span of 70,000 hours and high luminance. Moreover, by improving the LCD panel component and design, it achieves a wide operating temperature range of -20 to +70°C. This guarantees stable, long-term operation even in the extreme temperature conditions sometimes required for industrial applications.
This combination of NLT's distinguished LCD panel technology and white LED backlight system enables superior product features and reliability. The backlight system also contributes to a lower environmental impact, due to the design for low power consumption and because LED is mercury-free.
Power supply voltage is 3.3V for the signal and 12V for the backlight; the panel size is 363.8(typ.) x 215.9(typ.) x 10.3(max) mm; the display area is 344.232(H) x 193.536(V) mm and they're available now.
View TFT Colour Displays at RDS.
For more information please visit: www.review-displays.co.uk/
RDS - Review Display Systems Ltd
Horton Place
Horton's Way
Westerham
Kent TN16 1BT
Contact: Graham Smith, Sales Manager
Tel : +44 (0)1959 563345
Email: grahamsmith@review-displays.co.uk
Web: www.review-displays.co.uk
