Revolvo SRB provide a reliable solution for Sludge Pump Operation at United Utilities Oldham Waste Water Plant.
15/01/2014 Revolvo Ltd

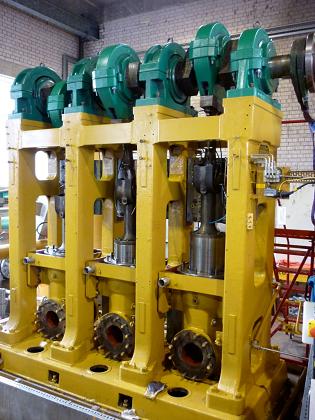

Revolvo SRB split roller bearings are providing heavy duty support for the crankshaft of a large sludge pump at a United Utilities waste water treatment plant in Oldham, following operational problems with the pump that resulted in damage to its original bearings & crankshaft.Revolvo was introduced to the project by ERIKS Electro Mechanical Services, who were commissioned to refurbish and repair the sludge pump, including straightening the crankshaft, bearing replacement, drive re-alignment and on-site assembly and commissioning. The total value of the contract was in excess of £200,000
One of the major problems faced by ERIKS was that the sludge pump crankshaft had been running misaligned, resulting in serious damage to the crankshaft itself, and the split roller bearings & housings that locate the pump connecting rods and support the crankshaft. ERIKS undertook the straightening & refurbishment of the crankshaft, while Revolvo manufactured new split roller bearings, housings and pedestals for the crankshaft support, and also refurbished the pump connecting rod end housings.
Revolvo has been involved in previous successful projects with United Utilities, including a recent project to replace rotary aerator support bearings at their Widnes Waste Water Treatment Plant. Revolvo's specially sealed SRB split roller bearings are ideal for water treatment plant operations as they are designed to operate fully submerged in sludge, needing only routine re-greasing to operate reliably for many years. For these applications with very long shafts, the SRB split-to-the shaft bearing design saves thousands of pounds in installation & maintenance costs as they can be easily removed and replaced at any point along the shaft without any dismantling of ancillary equipment.
A total of seven Heavy Duty 150 mm SRB split roller bearings and housings were supplied for the application to the ERIKS EMS site who undertook the reassembly and installation of the crankshaft assembly. This was achieved within time and on budget, and the pump is now back in continuous service at the Oldham site.
Commenting upon a successful outcome to the project Revolvo's Sales and Marketing Director, Adrian Menzies, said: "Revolvo has a very successful history of installing bearings in applications where they will be submerged in sludge or effluent. Thanks to a very effective sealing system our bearings are capable of surviving far longer than traditional bearings - 5 years, or longer - with only the basic maintenance of standard regreasing required. Another advantage of SRB split roller bearings is that when they do reach the end of their life, they are very easy to replace."
For more information, please contact:
Adrian Menzies
Revolvo Ltd
Unit 4
Yorks Park
Blowers Green Road
Dudley
West Midlands
DY2 8UL
UK
Tel: +44 (0) 1384-245370
Fax: +44 (0) 1384-245371
Email: Adrian.Menzies@Revolvo.com
Web: www.revolvo.com
